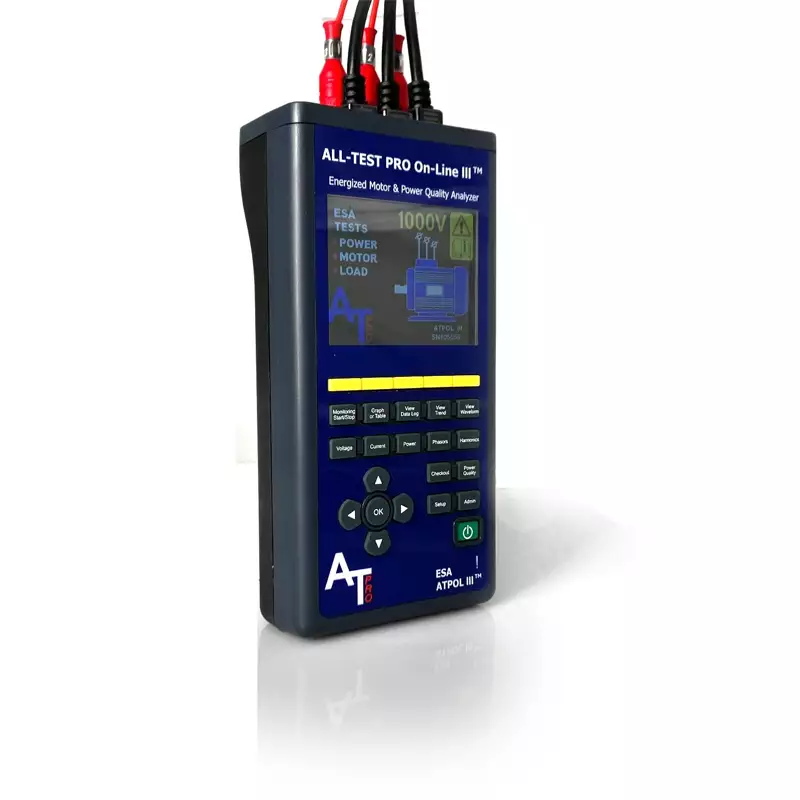

All Test Pro ATPOL III Energized Electrical Analysis (ESA)
The ATPOL III power quality analyzer and electric motor analyzer comprehensively evaluates the electrical and mechanical efficiencies of AC/DC motors, generators, and transformers.
The ATPOL III is the most advanced portable motor and power quality analyzer on the market.
$28,762.09
| Features | • Lightweight & Portable: Compact handheld design, weighing approximately 1 lb—ideal for use in the field or on the shop floor • Fast Testing: Complete tests in as little as 10 seconds; high-resolution motor diagnostics available in 60 seconds • Long-Distance Testing: Virtually unlimited distance between the motor and load, making it ideal for hard-to-reach or submersible equipment • Early Fault Detection: Identifies developing electrical and mechanical faults at their earliest stages—before failure occurs • Superior Mechanical Diagnostics: Detects many mechanical faults earlier than traditional methods, such as vibration or infrared analysis • Access to Hidden Faults: Measures conditions and faults not accessible by other diagnostic techniques • Enhanced Safety: Bluetooth® wireless communication allows technicians to operate the device and collect data remotely, reducing exposure to energized equipment • Efficient Asset Management: Built-in Test Plan Manager supports route-based testing and trend analysis for streamlined condition monitoring across multiple assets |
|---|---|
| Testing Capabilities | • Complete electrical and mechanical motor analysis (ESA), including stator, rotor, and incoming power evaluation • Driven load diagnostics, detecting issues such as misalignment, unbalance, bearing wear, and mechanical looseness • Process performance analysis, identifying problems like cavitation or flow restrictions • Motor startup analysis, with transient waveform capture for identifying issues during acceleration • Energy data logging, including real, apparent, and reactive power measurements • Harmonic analysis, identifying distortion that can affect equipment performance • Voltage and current monitoring, including balance, mismatch, and crest factor evaluations • 8-channel waveform display and capture, providing a detailed view of system behavior • Power disturbance detection, including voltage sags, swells, transients, and event capture • Incoming power assessment, to identify faults from the utility or supply side • Variable Frequency Drive (VFD) and DC controller circuit analysis, for advanced motor control systems |
